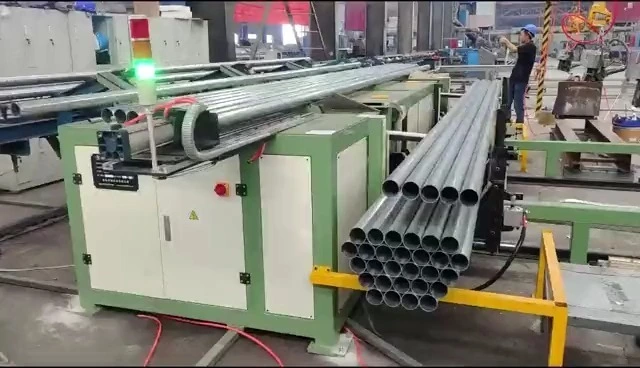

Round & Square Tube Interchangeable Packer
The machine is used for collecting round, square and rectangular pipes at the end of welded pipe production line. Single round tubes can be stacked into hexagonal bundles, square and rectangular tubes into square bundles, which can be transported to the bundling station. After manual bundling, they can be hoisted and put into storage.
5.0
Certification:
ISO9001
Start Port:
Qingdao
Delivery time:
to be negotiated
Payment:
T/T
MOQ:
1 Unit
Brand:
Lingdong
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameters
| Maximum speed of pipe production line | 140m/min |
| Maximum bundle diameter of square pipe | 500*500mm |
| Square pipe specification | 25mm ~ 150mm ; Rectangular tube (20*40～75*150)mm |
| Round pipe specification | φ 40mm ~ φ 165mm |
| Maximum diagonal distance of round tube bundle | 650mm |
| Maximum bundle weight | 1500kg/ bundle |
| Tube length range | 4500-7500mm/per piece |
Note:
Steel pipe packaging machines are generally greatly affected by user site conditions and production line layout. Therefore, when customizing machines, it is necessary to understand the user's on-site conditions, product specifications and usage requirements so as to determine the design and manufacturing plan with the user ti design and manufacture according to the user's special needs.
Product Introduction
The machine combines functions of round pipe and square/rectangular pipe packing machine in one, which is especially suitable for producing both round pipe and square/ rectangular pipe on one welded pipe production line, and can reduce the investment and equipment occupation area. Partial automation is realized when the round pipe hexagonal bundle and square bundle are switched.
Due to the different working parameters and site conditions of the user's production line, it is generally necessary to provide customized basic production parameters.
This equipment has a high degree of automation, is easy to operate, and is easy to maintain. It can sequentially complete processes such as roller tube discharge, tube lifting, control, layering, stacking into bundles, bundle transportation to the bundling station, and bundle transportation to the storage rack.
